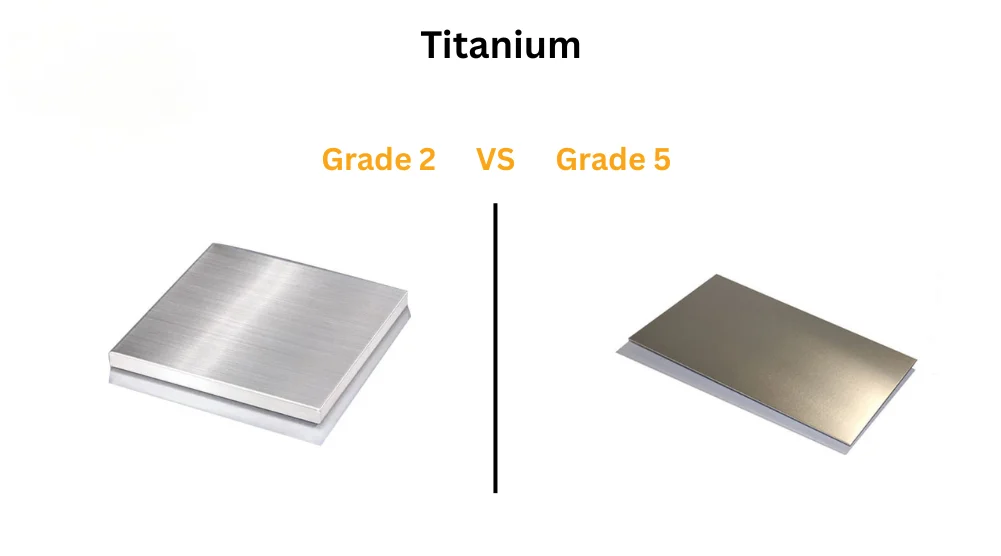

When selecting titanium for a project, the choice almost always narrows down to two contenders: Grade 2 (Commercially Pure) and Grade 5 (Ti-6Al-4V). Together, these two grades account for the vast majority of global titanium usage, yet they serve two very different engineering purposes.
If you are in a rush, here is the fundamental difference:
- Titanium Grade 2 is the “Industrial Workhorse.” It is commercially pure, offering superior corrosion resistance and excellent formability (ductility), making it ideal for chemical processing and piping.
- Titanium Grade 5 is the “Aerospace Athlete.” It is an alloy (6% Aluminum, 4% Vanadium) that sacrifices some ductility for extreme strength (nearly 3x stronger than Grade 2) and hardness, making it the standard for load-bearing structures and precision parts.
Quick Specs: Grade 2 vs Grade 5 Comparison Chart
The following table outlines the critical differences at a glance to help you make a quick decision.
| Feature | Titanium Grade 2 (CP) | Titanium Grade 5 (Ti-6Al-4V) |
|---|---|---|
| Classification | Commercially Pure (Alpha Phase) | α-β Alloy |
| Yield Strength | ~275 – 345 MPa (40-50 ksi) | ~828 – 895 MPa (120-130 ksi) |
| Hardness | Moderate (Rockwell B 80) | High (Rockwell C 30-36) |
| Corrosion Resistance | Excellent(Superior in oxidizing media) | Very Good(Slightly lower than Gr2) |
| Formability | High (Easy to bend, cold form) | Low (Difficult to cold form) |
| Machinability | “Gummy”(Prone to galling/sticking) | “Hard & Hot”(Prone to heat/wear) |
| Max Service Temp | ~315°C (600°F) (Structural limit) | ~400°C (750°F) |
| Primary Forms | Sheet, Plate, Seamless Tubing, Bar | Bar, Plate, Fasteners (Seamless tubing is rare) |
| Cost Index | Lower (Raw material & processing) | Higher (Material + slower machining) |
Chemical & Microstructural Differences: The “Why” Behind the Performance
To understand why Grade 5 is nearly three times stronger than Grade 2, we have to look beyond the naked eye and into the metallurgy. The difference lies in their purity and their crystal structure phases.
Grade 2: The “Alpha” Structure (Commercially Pure)
Titanium Grade 2 is classified as Commercially Pure (CP) titanium. It is essentially 99% pure titanium.
- Microstructure: It possesses an Alpha (α) phase crystal structure (Hexagonal Close-Packed) at room temperature.
- The Secret Ingredient: The strength of Grade 2 is actually controlled by “impurities”—specifically Oxygen and Iron. By carefully adjusting the oxygen content (typically around 0.25%), manufacturers can increase the strength of the material without adding expensive alloying elements.
- Limitation: Because it is a single-phase alpha structure, Grade 2 cannot be heat-treated to increase its strength. It can only be strengthened through cold working (strain hardening).
Grade 5: The “Alpha-Beta” Alloy (Ti-6Al-4V)
Titanium Grade 5 is the most widely used titanium alloy in the world. Its name, Ti-6Al-4V, reveals its recipe:
- 6% Aluminum: Acts as an Alpha stabilizer, increasing strength and high-temperature performance.
- 4% Vanadium: Acts as a Beta stabilizer. This allows a portion of the crystal structure to exist in the Beta (β) phase (Body-Centered Cubic) at room temperature.
- The Result: Grade 5 is a two-phase (α+β) alloy. This structure allows the material to be heat-treated (solution treated and aged) to achieve even higher strength levels—something Grade 2 simply cannot do.
Mechanical Properties Deep Dive: Strength, Hardness & The Density Myth
This section compares the raw performance data. While Grade 5 is often marketed as the “superior” metal, the data shows that Grade 2 holds its own in specific categories like ductility.
1. Strength: The 3x Multiplier
The most significant differentiator is Yield Strength—the point at which the material permanently deforms.
- Grade 2: Typical yield strength is around 275-345 MPa. It offers strength comparable to common structural steels but with significantly less weight.
- Grade 5: Typical yield strength jumps to 828-895 MPa.
The Takeaway: Grade 5 is roughly 3 times stronger than Grade 2. If you are designing a suspension arm or a turbine blade, Grade 5 is non-negotiable.
2. The “Density Myth” (Important!)
A common misconception is that Grade 5 is “lighter” than Grade 2.
- The Reality: They have almost identical density. Grade 5 (∼ 4.43 g/cm³) is technically slightly lighter than Grade 2 (∼ 4.51 g/cm³) due to the addition of aluminum, but for general engineering purposes, they are considered equal.
- Why use Grade 5? It’s about the Strength-to-Weight Ratio. You can use less material (thinner walls) with Grade 5 to achieve the same load capacity as a thicker Grade 2 part.
3. Hardness & Wear Resistance
- Grade 2 (Softer): Typically measures in the Rockwell B scale (70-80 HRB). It is prone to surface scratching.
- Grade 5 (Harder): Measures in the Rockwell C scale (30-36 HRC). It resists wear better, which is why it is preferred for knife handles and bolt heads.
💡 Engineer’s Note on Stiffness: Notice that the Modulus of Elasticity (Young’s Modulus) is similar for both (~105-115 GPa). This means Grade 5 is NOT significantly stiffer than Grade 2. If a Grade 2 part flexes too much under load, switching to Grade 5 won’t stop the flex; it will just prevent the part from breaking while it flexes. To reduce flex, you must increase the thickness.
Machinability Guide: How to Cut Without Chaos
Machining titanium is notorious for destroying tools, but Grade 2 and Grade 5 fail for different reasons. Understanding these distinct “personalities” is the key to a profitable job.
1. Machining Grade 2: The “Gummy” Nightmare
Do not let the lower strength fool you; Grade 2 can be more frustrating to machine than Grade 5 due to its ductility.
- The Problem: It is soft and “gummy.” It doesn’t want to chip; it wants to smear.
- Galling: The material tends to weld itself to the cutting tool edge (Built-Up Edge).
- Burrs: It leaves nasty, stringy burrs that are difficult to remove.
- The Strategy:
- Tooling: Use sharp, polished, uncoated carbide or high-positive rake geometry (aluminum-style tools). You need to shear the metal cleanly.
- Avoid Coatings: Thick coatings can dull the edge slightly, causing Grade 2 to stick.
- Chip Breaking: Ensure chips break to avoid “bird nesting” around the tool.
2. Machining Grade 5: The Heat Trap
Grade 5 behaves more like a tough stainless steel but with a thermal twist.
- The Problem:Heat Buildup. Titanium conducts heat poorly. Heat stays concentrated at the tool tip rather than leaving with the chip.
- Work Hardening: If you dwell or rub the tool, the material hardens instantly, glazing over and destroying your cutter.
- The Strategy:
- Tooling: Use AlTiN (Aluminum Titanium Nitride) coated carbide designed for heat resistance.
- The Golden Rule:Low RPM, High Feed. Slow the spindle to reduce heat, but increase the feed (chip load) to ensure the tool bites into fresh material, not the work-hardened layer.
- Coolant: High-pressure coolant (HPC) is mandatory.
Availability, Forms & The “Tubing Trap”
Choosing the right grade isn’t just about physics; it’s about supply chain reality. You might design the perfect Grade 5 part, but if the raw material form doesn’t exist, your project stalls.
The “Tubing Trap”: A Critical Warning
This is the most common mistake in titanium design.
- The Scenario: An engineer needs a strong tube for a roll cage or bicycle frame, so they specify “Grade 5 Seamless Tubing.”
- The Reality:Grade 5 seamless tubing is extremely rare and prohibitively expensive. The material is too hard to extrude economically.
- The Solution:
- If you need seamless tubing, use Grade 2 (or upgrade to Grade 9 / Ti-3Al-2.5V, which is designed for tubing).
- If you absolutely need Grade 5, be prepared to use welded tubing or machine it from a solid bar (gun drilling).
| Form | Titanium Grade 2 Availability | Titanium Grade 5 Availability |
|---|---|---|
| Round Bar | High | High |
| Sheet / Plate | High | High (AMS 4911) |
| Seamless Tubing | High | Very Low(Switch to Gr9) |
| Fasteners | Moderate | High |
Cost Analysis: Beyond the Price Tag
When estimating the budget, do not focus solely on the price per kilogram. You must calculate the Total Cost of Production.
- Raw Material:Grade 5 is more expensive (typically 20-60% higher than Grade 2) due to the vanadium content and complex processing.
- The Machining Multiplier: Because Grade 5 requires slower cutting speeds (lower material removal rates) and consumes more tools, the machining cost is significantly higher.
The Equation:
Total Cost = Material + (Machining Hours × Shop Rate) + Tooling
If a part can be made from Grade 2, using Grade 5 is burning money. However, if you need the strength, Grade 5 is cost-effective because you can use less material to support the same load.
Application Decision Tree: Which Grade Should You Choose?
✅ Choose Grade 2 (CP) If:
- Environment is Key: You are dealing with seawater, chemical processing, or heat exchangers.
- Forming is Required: You need to bend tubes, deep-draw sheets, or cold-form parts.
- Tubing is Essential: Your design relies on standard seamless tubing.
- Anodizing: You want brighter, more vibrant anodized colors.
✅ Choose Grade 5 (Ti-6Al-4V) If:
- Strength is King: You are designing aerospace structures, turbine blades, or suspension parts.
- Weight Matters: You need a high Strength-to-Weight Ratio.
- Surface Hardness: The part will experience contact or wear (e.g., fasteners, knife handles).
- Temperature: Service temperatures approach 400°C (750°F).
FAQ
1. Is Grade 5 titanium better than Grade 2?
There is no “better,” only “fitter.” Grade 5 is better for strength (3x stronger). Grade 2 is better for corrosion resistance and formability.
2. Can you weld Grade 2 to Grade 5 titanium?
Yes, but you should use Commercially Pure (CP) filler wire (like ERTi-2) to ensure the weld zone remains ductile. Using Grade 5 filler can result in a brittle weld prone to cracking.
3. Does Grade 5 titanium rust?
No. Both grades are virtually immune to corrosion in natural environments, including saltwater. They form a stable oxide layer that prevents rust.
4. Which grade is used for medical implants?
Both are used. Grade 2 is often used for dental implants and bone plates that need malleability. Grade 5 (specifically Grade 23 / Ti-6Al-4V ELI) is the standard for load-bearing replacements like hip joints and bone screws due to its high fatigue strength and biocompatibility.
5. Why is Grade 5 titanium so much more expensive?
It’s not just the raw material (which contains expensive Vanadium). The real cost driver is processability. Grade 5 eats up tools faster and requires slower machining speeds, driving up the final part cost significantly compared to Grade 2.
Conclusion
The battle between Titanium Grade 5 and Grade 2 isn’t about which metal is superior; it’s about matching the physics to the application.
- Grade 2 is the champion of the chemical and marine world—formable, available, and cost-effective.
- Grade 5 is the hero of the aerospace and performance world—rigid, robust, and incredibly strong.
Still unsure? Always check the ASTM standards (B265 for plate, B348 for bar) and consult with your supplier about the availability of specific forms before finalizing your design.
